1,990.00฿
| Type no. | Description |
| Outdoor light level transmitter 0 to 500 Lux, 1 kLux, 2 kLux, 5 kLux, 20 kLux or 60 kLux | |
| LLO 010 | 0-10 Vdc output |
| LLO 420 | 4-20 mA output |
| Type no. | Description |
| Room light level transmitter 0 to 500 Lux, 1 kLux, 2 kLux, 5 kLux, 20 kLux or 60 kLux |
|
| LLR 010 | 0-10 Vdc output |
| LLR 420 | 4-20 mA output |

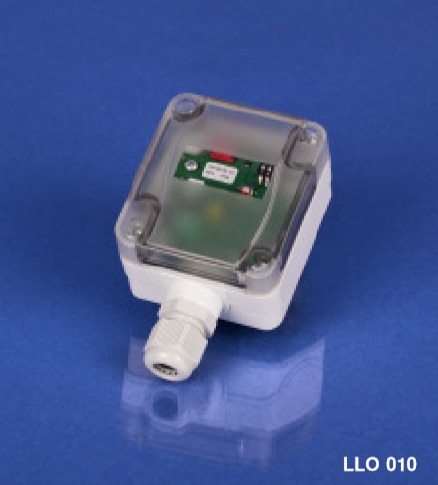

| LLO-Series | |
| Power Supply |
24 Vac/dc for LLO 010 24 Vdc for LLO 420 |
| Output | 0-10 Vdc for LLO 010 4-20 mA for LLO 420 |
| Sensor | Light sensor with diffuser |
| Measuring range |
0-500 Lux, 1 kLux, 2 kLux, 5 kLux, 20 kLux or 60 kLux (via DIP switches) Other ranges optional as 0-100 kLux |
| Power consumption | < 1W at 24 Vdc: < 2VA at 24 Vac |
| Ambient temp. | -30 to +70°C |
| Electrical connect. |
0.14 to 1.5mm2 via terminal screws on circuit board |
| Accuracy | < +/- 5% of final value |
| Enclosure | plastic, material ABS colour pure white (similar RAL9010) optional stainless steel enclosure |
| Dimensions | 72 x 64 x 43 mm |
| Protection class |
III (according to EN 60 730) |
| Protection type |
IP65 (according to EN 60 529) |
| Standards | CE conformity, electromagnetic compatibility according to EN 61326 EMC directive 2014 / 30 / EU |

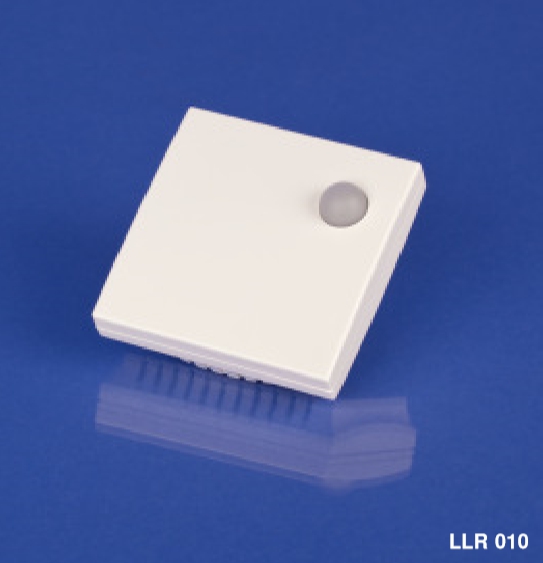

| LLR-Series | |
| Power Supply |
24 Vac/dc for LLR 010 24 Vdc for LLR 420 |
| Output | 0-10 Vdc for LLR 010 4-20 mA for LLR 420 |
| Sensor | Light sensor with diffuser |
| Measuring range |
0-500 Lux, 1 kLux, 5 kLux or 20 kLux (via DIP switches) Other ranges optional as 0-100 kLux |
| Power consumption |
< 1W at 24 Vdc: < 2VA at 24 Vac |
| Ambient temp. |
0 to +50°C |
| Electrical connect. |
0.14 to 1.5mm2 via terminal screws on circuit board |
| Accuracy | < +/- 5% of final value |
| Enclosure | plastic, material ABS colour pure white (similar RAL9010) optional stainless steel enclosure |
| Dimensions | 85 x 85 x 27 mm |
| Protection class |
III (according to EN 60 730) |
| Protection type |
IP30 (according to EN 60 529) |
| Standards | CE conformity, electromagnetic compatibility according to EN 61326 EMC directive 2014 / 30 / EU |
