Name: Duct Humidity & Temperature - HDTT SERIES
SKU: DHTT-HDTT
Price: 1990.00 THB
Availability: InStock

PART NUMBER & PRICE

Type no.	Humidity output	Temp. output	LCD display
Duct Humidity & Temperature Transmitter
HDTT 010	0-10 Vdc	0-10 Vdc	No
HDTT 420	4-20 mA	4-20 mA	No

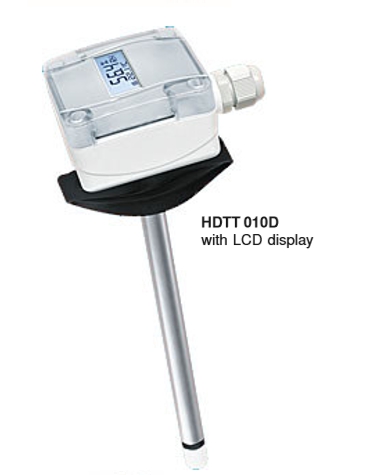

HDTT 010D	0-10 Vdc	0-10 Vdc	Yes
HDTT 420D	4-20 mA	4-20 mA	Yes

SPECIFICATION

Power supply	24 Vac (+/-20%) and 15-36 Vdc (+/-10%) for 0-10 Vdc output 15-36 Vdc (+/- 10%) for 4-20 mA output (depending on working resistance)
Power consumption	< 1.1 Va / 24 Vdc ; < 2.2 VA / 24 Vac
Sensor	Digital humidity sensor with integrated temperature sensors, dew proof, small hysteresis, high long-term stability
Sensor protection	Membrane filter, plastic, exchangeable
Humidity Measuring range	0 to 100% r.H.
Humidity Operation range	0 to 95% r.H.
Humidity Accuracy	+/- 3% (20 to 80% r.H.), at +20°C otherwise +/- 5%
Humidity Output	0-10 Vdc or 4-20 mA
Temperature Measuring range	-35°C to +35°C, -35°C to +75°C, 0 to 50°C or 0 to +80°C. See table
Temperature Operation range	+/- 0.8 Kelvin at +20°C, depending on place of installation and mounting position.
Ambient Temperature	storage -25°C to +50°C, operation -50 to +50°C
Enclosure	Plastic material, polyamide, 30% glass-globe-reinforced with quick locking screws. color pure white (similar RAL9010)
Cable gland	M16, including strain releif
Tube	stainless steel, dia. 16 mm
Probe length	230 mm, on request 400 mm and 500 mm
Mounting	With supplied (attached) flange
Long-term stability	+/ 1% per year
Protection class	IP65 (according to EN 60529)
Standards	CE conformity according to EMC directive 2004/108/EC accoring to EN 61326-1:2006 according to EN 61326-2-3:2006
