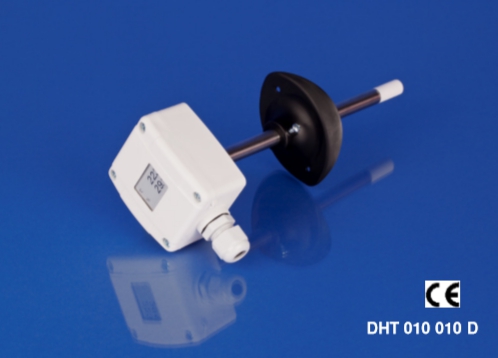

Name: Duct Humidity & Temperature - DHT SERIES
SKU: DHTT-DHT
Price: 1990.00 THB
Availability: InStock

PART NUMBER & PRICE

Type no.	Humidity Output	Temperature Output	Display	Passive Temp.c Output
DHT 010 010	0-10 Vdc	0-10 Vdc	No	No
DHT 010 010 D	0-10 Vdc	0-10 Vdc	Yes	No
DHT 420 420	4-20 mA	4-20 mA	No	No
DHT 420 420 D	4-20 mA	4-20 mA	Yes	No
DHT 010 010 XXX	0-10 Vdc	xxx (see below)	No	Yes
DHT 010 010 XXX D	0-10 Vdc	xxx (see below)	Yes	Yes
DHT 420 420 XXX	4-20 mA	xxx (see below)	No	Yes
DHT 420 420 XXX D	4-20 mA	xxx (see below)	Yes	Yes
XXX = Passive sensor PT100, PT100 1/3 DIN, PT1000, PT1000 1/3 DIN, NI1000, NI1000/TK5000, NTC 1.8K, NTC 5K, NTC 10K, NTC 20K, KTY81-210
Example: Humidity output 0-10 Vdc, Temperature Output 0-10 Vdc, PT1000 temperature direct sensor output and Display, type is : DHT 010 010 PT1000 D

SPECIFICATION

Humidity output:	0-10 Vdc or 4-20 mA (3-wire)
Temperature output for active versions:	0-10 Vdc or 4-20 mA (3-wire)
Temperature output passive sensor:	PT1000, PT100, NTC, NI1000 etc.
Power supply with 0-10 Vdc output:	12-24 Vac or 16-36 Vdc
Power supply with 4-20 mA output:	16-36 Vdc
Sensor element (humidity):	Capacitive sensor
Sensor element (temperature):	Capacitive sensor
Sensor element with passive temperature output:	At customer’s selection PT1000, PT100, NTC, NI1000 etc.
Humidity (relative) accuracy:	± 2% at 20 to 80% rH
Temperature operating:	-30°C to +70°C
Temperature accuracy:	± 0,3K (+5°C to 60°C) + 1.5% f.s
Load for analogue 0-10 Vdc output:	10 to100 kOhm
Load for analogue 4-20 mA output:	50 to 500 Ohm
Operating temperature:	-30°C to +50°C
Operating range:	0 to 98% rH
Power consumption:	24 to 44 mA
Sensor set up time:	60 min.
Response time for rH:	8 Secs. (63% at condensation)
Connection:	Screw clamps 1,5 mm²
Housing:	Material ABS, Colour RAL 9010
Protection class housing:	IP65
Dimensions Housing (L x W x H):	65 x 60 x 38 mm
Probe lenght:	220 mm
Probe diameter	12 mm
Relative humidity measuring range:	see configuration page 4
Absolut humidity measuring range:	see configuration page 4
Dew point measuring range :	see configuration page 4
Enthalpy:	see configuration page 4
