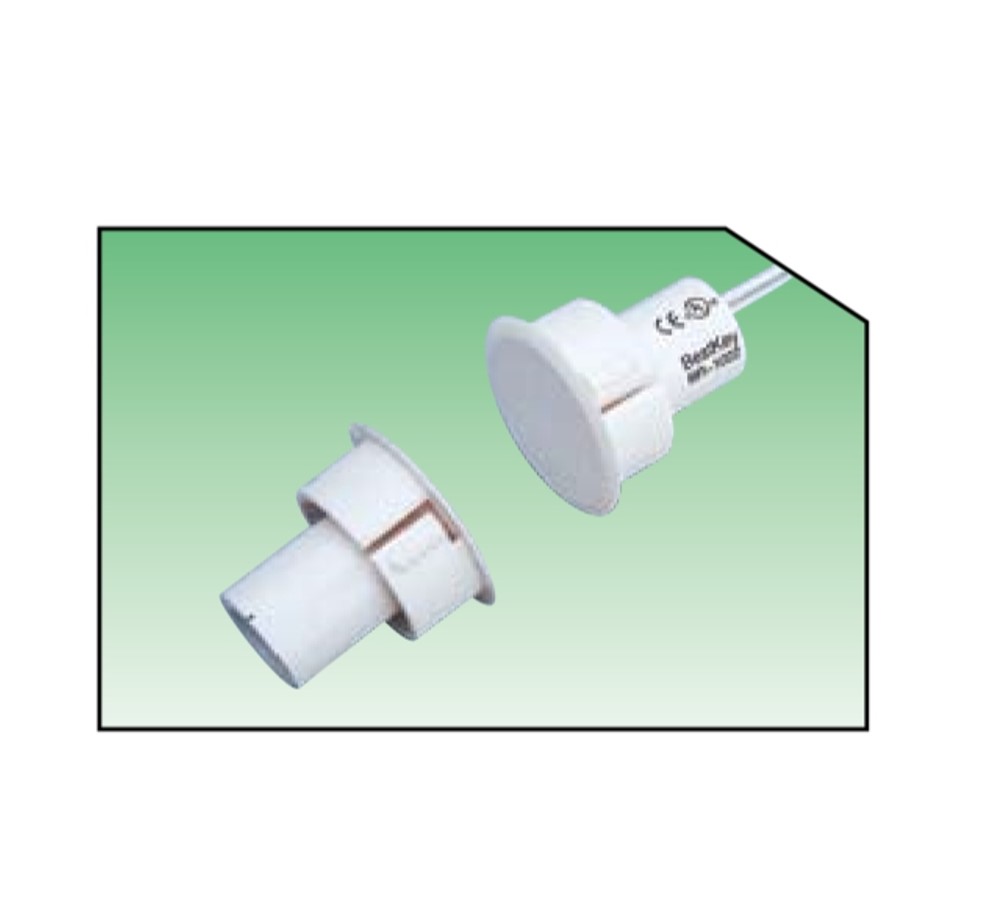

- 1″ diameter press to fit
- Suitable for steel door install
- Self-locking
- Standard 18″ #22AWG leads
- Special leads available
- Swith and Magnet available seperately
- Resistor, Diode and Supervisory Loop available on request
- Colors: White, Brown, Grey
|

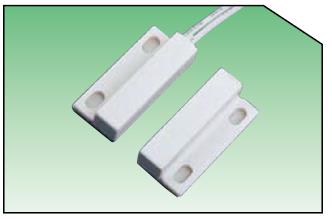

- Mini Stick-on contact with flange
- Side leads with #24AWG 18″ length
- Adhesive and screw mount included
- Speical leads on request
- Switches or magnets available seperately
- Resistor, Diode and Supervisory Loop available on request
- Colors: White, Brown, Grey
|

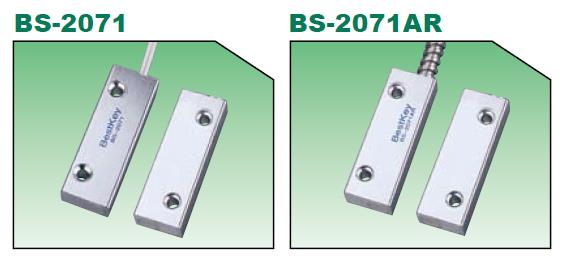

- Metal magnetic contacts
- Ideal for commercial application or industrial use
- Screws included
- Standard 18″ #22AWG leads

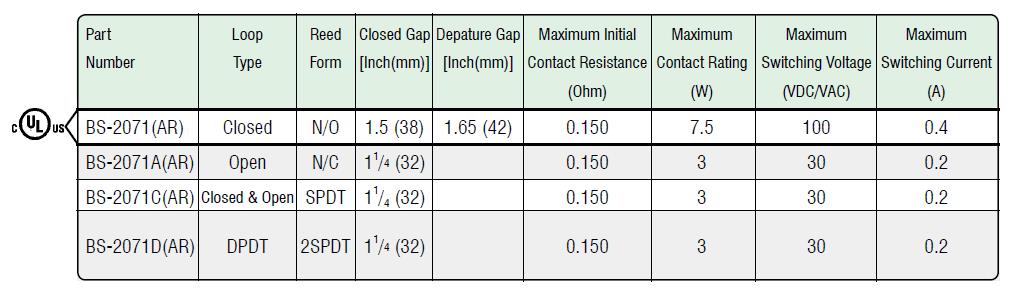

- 2 Conductor jacket cable on request(BS-2071J)
- Armored cable on request (BS-2071AR) * Longer leads available
- Resistor, Diode and Supervisory Loop available on request
|

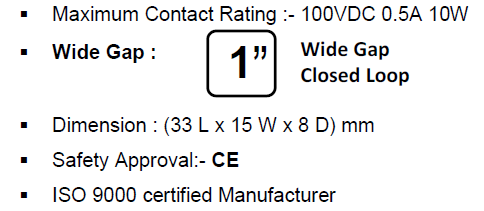

- Maximum Contact Rating :- 100VDC 0.5A 10W
- Dimension : (33 L x 15 W x 8 D) mm
- Safety Approval:- CE
- ISO 9000 certified Manufacturer
|

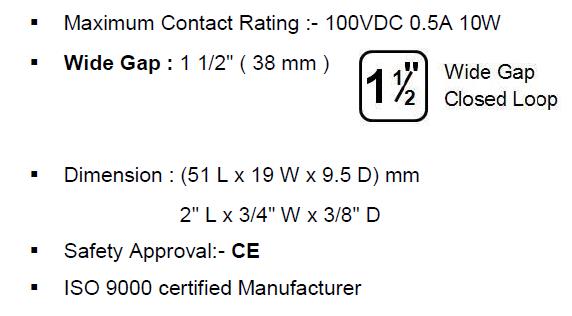

- Maximum Contact Rating :- 100VDC 0.5A 10W
- Wide Gap : 1 1/2″ ( 38 mm )
- Dimension : (51 L x 19 W x 9.5 D) mm
- 2″ L x 3/4″ W x 3/8″ D
- Safety Approval:- CE
- ISO 9000 certified Manufacturer
|
