Condensation Sensor – WCD2
Home
SENSORS/TRANSMITTER
Condensation Sensor – WCD2
🔍

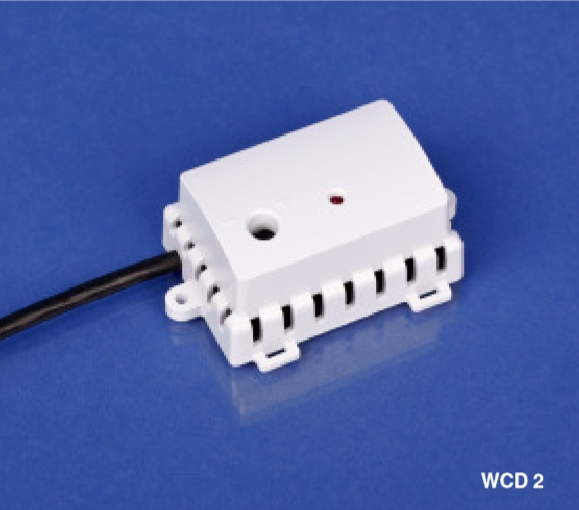

Condensation Sensor – WCD2
1,990.00
฿
Condensation Sensor - WCD2 quantity
Add to basket
SKU:
CS-WCD2
Category:
SENSORS/TRANSMITTER
Tags:
Condensation Sensor
,
Sensors
,
VCP
PART NUMBER & PRICE
SPECIFICATION
DOCUMENTS
PART NUMBER & PRICE
Type no.
Description
WCD 2
Condensation Sensor
2 meter cable On request: 5 meter cable
SPECIFICATION
Output
Current
dry <5mA, wet >12 mA
VFC
24 Vac/dc @ 1A resistive SPDT
Supply voltage
24 Vdc ±5% or 24 Vac ±10%
Response time
<5 sec
Measurement Accuracies:
Temp
±0.2°C
RH
±5% RH
Set point offset range
±2°C
Flying lead
Low Smoke Zero
Halogen (LSZH)
Dimensions
W73 x H48 x D30 mm
Mounting plate
1mm thick stainless steel
Statutory
Compliance,
EMC:
Emissions EN61000-6-3
Immunity EN61000-6-2
DOCUMENTS
condensation-sensor-wcd2
