PART NUMBER & PRICE
| Type no. | Description |
| FAPS | Air Flow Paddle Switch |

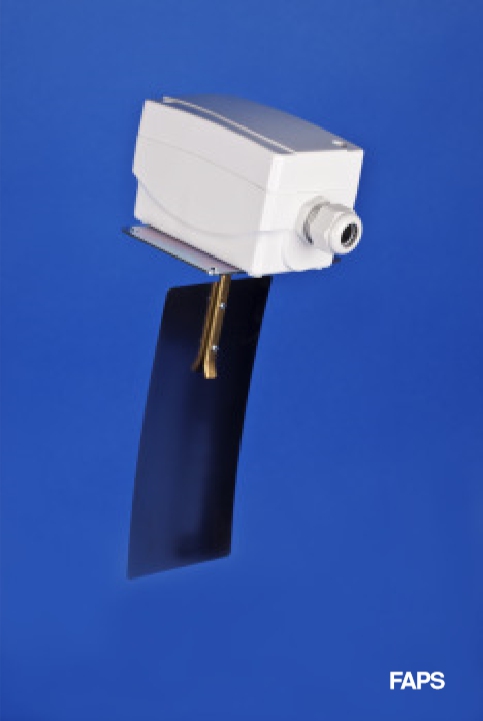

Air Flow Paddle Switch
1,990.00฿
SPECIFICATION
| Switching capacity | 15 (8) A; 24-250 Vac |
| Contact | dust proof micro switch as potential-free single-pole change over contact |
| Enclosure | plastic, material polymide, 30% glass-globe-reinforced, color pure white (similar RAL 9010) |
| Dimensions | 108 x 73 x 70 mm |
| Base | galvanised steel |
| Moving arm | brass |
| Vane | stainless steel V2A, 1.4301 |
| Cable union | M20, including strain relief |
| Enclosure temp. | -40 to +85°C |
| Operation difference | > 1.0 m/s |
| Electrical connection | 0.14-0.15 mm2 via terminal screws |
| Protection class | (according to EN 60730) |
| Protection type | IP65 (according to IEC 529) |
| Standards | CE conformity, EMC directive 89/336/EWG, low-voltage 72/23/EWG |
