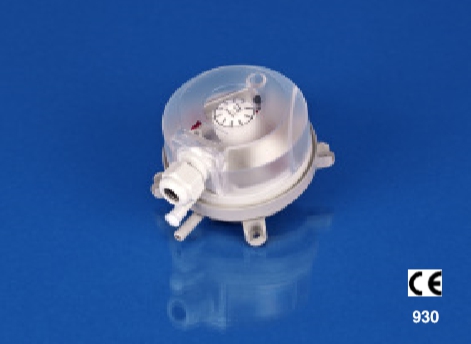

Name: Air Differential Pressure - 930 SERIES
SKU: ADP-930
Price: 1990.00 THB
Availability: InStock

PART NUMBER & PRICE

Type No.	Adjustment Range	Switching Differential
Air differential pressure switch
930.80 222511	20–200 Pa	10 Pa
930.80 222511N	20–300 Pa	10 Pa
930.84 222511	30– 400 Pa	15 Pa
930.83 222511	50– 500 Pa	20 Pa
930.85 222511	200–1.000 Pa	100 Pa
930.86 222511	500–2.500 Pa	150 Pa
930.87 222511	1000–4.000 Pa	250 Pa
DFK 200	Duct fixing kit	Switching Differential
Air differential pressure switch with duct fixing kit (DFK 200), packed together into a carton.
930.80 222534	20–200 Pa	10 Pa
930.80 222534N	20–300 Pa	10 Pa
930.84 222534	30– 400 Pa	15 Pa
930.83 222534	50– 500 Pa	20 Pa
930.85 222534	200–1.000 Pa	100 Pa
930.86 222534	500–2.500 Pa	150 Pa
930.87 222534	1000–4.000 Pa	250 Pa

SPECIFICATION

Technical Data
Output	on/off
MAX. operating pressure	10k Pa
Medium	Air, non-combustible and non-aggressive gases.
Temp. range	Medium and ambient temp.from -20°C to +85°C. Storage temperature from -40°C to +85°C.
Diaphragm material	Silicone, tempered at +200°C, free of gas emissions. Other materials available on request.
Pressure connections	2 plastic pipe connection pieces (P1 and P2), external diameter 6.0 mm: P1 for connection to higher pressure (marked +) P2 for connection to lower pressure (marked –)
Housing materials	Switch body made of PA 6.6. Cover made of PS.
Weight	150 g
Mechanical working life	Over 10.000.000 switching operations
Electrical rating	max. 1.0 A (0.4 A) / 250 Vac
Electrical connections	AMP flat plug 6.3 mmx 0.8 mm in accordance with DIN 46244 or push-on screw terminals. Cable conduit M16 with cable strain
Protection	IP 54
CE Conformity	Each depending on technical specification: Directive 2006/95/EC; RoHS Directive 2002/95/EC; Gas Appliance Directive 90/396/EC
